Growatt 5kVA Inverter - SPF5000TL-HVM-P
Original price
R 14,166.50
-
Original price
R 14,166.50
Original price
R 14,166.50
R 14,166.50
-
R 14,166.50
Current price
R 14,166.50

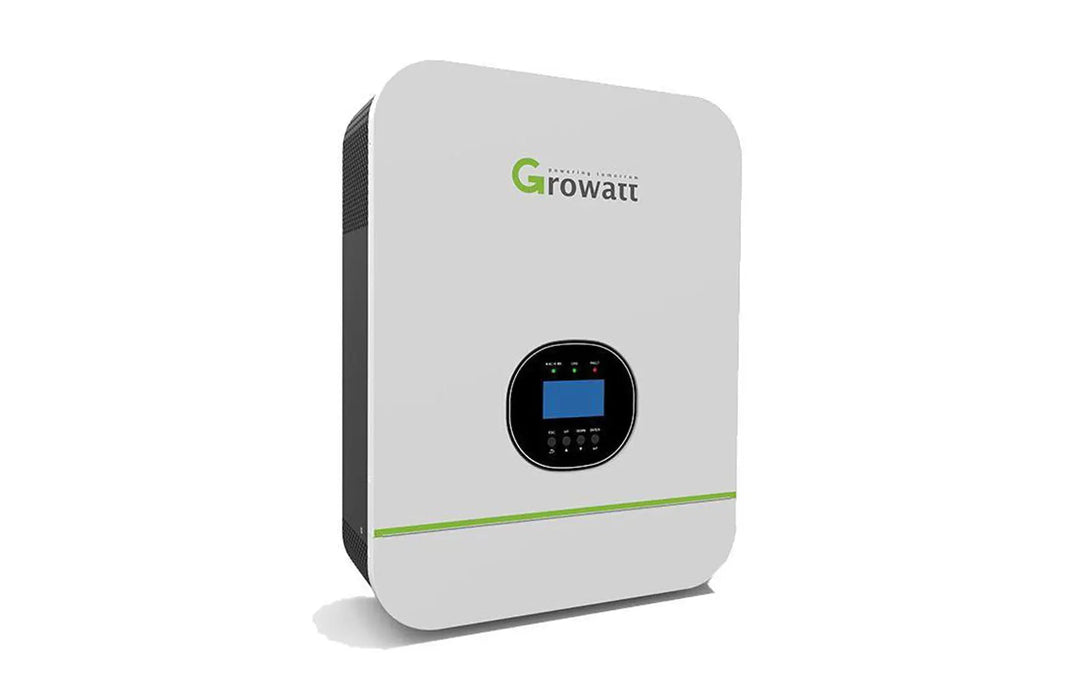

The Growatt 5kVA Inverter is a high-performance device designed for off-grid solar systems, providing a reliable and efficient power supply. With a rated power of 5000W, it can handle surge power of up to 10000VA, making it suitable for various applications. The inverter features a pure sine wave output, ensuring a stable and clean power supply. It also has a high efficiency of 93%, reducing energy losses and increasing overall system performance. The device is equipped with a powerful solar charger, allowing for maximum PV array power of 4500W and maximum solar charge current of 80A.
| Rated Power | 5000W |
| AC Voltage Regulation (Battery) | 230VAC ± 5% |
| Surge Power | 10000VA |
| Efficiency (Peak) | 93% |
| Waveform | Pure sine wave |
| Transfer Time | 10ms ~ 20ms |
| Maximum PV Array Power | 4500W |
| MPPT Range @ Operating Voltage | 60 VDC ~ 115 VDC |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum Solar Charge Current | 80A |
| Maximum Efficiency | 97% |
| AC Charge Current | 60A |
| AC Input Voltage | 230 VAC |
| Selectable Voltage Range | 90 - 280 VAC |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| Battery Voltage | 48 VDC |
| Battery Type(s) | Lithium / Lead-acid |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Height | 17.91 inches |
| Width | 13.78 inches |
| Depth | 5.12 inches |
| Weight | 25.35 lbs |
